Technical Sheet
Structure tent - Medium Beam
- Canvas sliding system in a round profile rail (Keder)
- Wind resistance up to 140 km / h
- Versatile and standard parts
- Compatible with our other models
- Interchangeable legs and rafters
- Square rail allows quick and economical attachment with a standard half-inch bolt
- Double roof option for better insulation Anticondensation (excellent option for winter tents)
- Sliding of the walls by small rollers also for rail keder

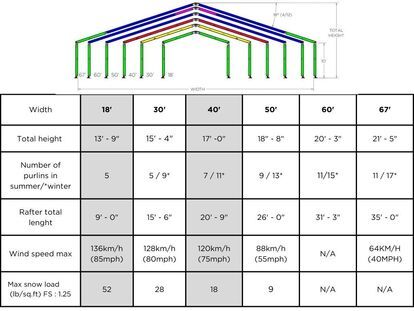

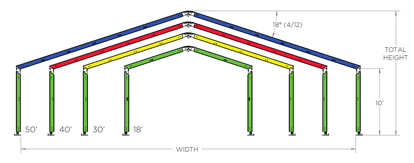

Dimensions
Width | 18' | 30' | 40' | 50' |
---|---|---|---|---|
Total Height | 13'-9" | 15'-4" | 17'-0" | 18' - 8" |
Number of purlins in summer/*winter | 5 | 5/9* | 7/11" | 9/13* |
Rafter total lenght | 9' - 0" | 15' - 6" | 20' - 9" | 26' - 0" |
Wind speed max | 136km/h (85mph) |
128km/h (80mph) |
120km/h (75mph) | 88km/h (55mph) |
Max snow load (lb/sq.ft) FS : 1.25 | 52 | 28 | 18 | 9 |
Structure & medium profile
- Dimensions: 2,40’’ X 8.00’’
- Anodized 6005-T5 aluminum extrusion
- Other parts in ASTM A36 and A514 Gr.S (CHT100) zinc plated steel
- Steel cables 1/4 ‘’ - 7X19 white vinyl coated
- Square rail for ‘Bolt-On’ attachment system (pendant lights, decor, etc.)
- Universal bolt 1/2’’ - 13 Gr. 5
Vinyl
- Coated vinyl 22oz
- NFPA 701 and CAN / ULC-S109 fire retardant
- Opaque to UV rays (Blackout)
- Anti-mold vinyl
- All vinyl parts inserted in the Keder rails (13mm)
- Rollers for wall opening
- Carrying bags of vinyl parts included
Tinted French windows
Clear French windows
Plain (no window)
Panoramic tinted window
Panoramic clear window
Color, printing and stickers
