Technical Sheet
Structure tent - XL Beam
- Canvas sliding system in a round profile rail (Keder)
- Wind resistance up to 140 km / h
- Versatile and standard parts
- Compatible with our other models
- Interchangeable legs and rafters
- Square rail allows quick and economical attachment with a standard half-inch bolt
- Double roof option for better insulation Anticondensation (excellent option for winter tents)
- Sliding of the walls by small rollers also for rail keder

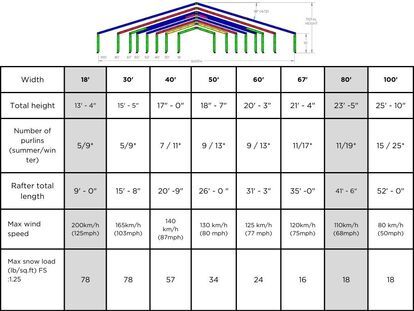

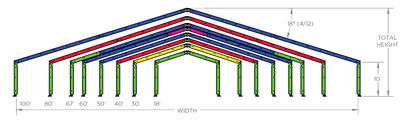

Dimensions
| Width | 18' | 30' | 40' | 50' | 60' | 67' | 80' | 100' |
|---|---|---|---|---|---|---|---|---|
| Total height | 13'-4" | 15'-5" | 17'-0" | 18'-7" | 20'-3" | 21'-4" | 23'-5" | 25'-10" |
| Number of purlins in summer/*winter | 5/9* | 5/9* | 7/11* | 9/13* | 9/13* | 11/17* | 11/19* | 15/25* |
| Rafter total length | 9'-0" | 15'-8" | 20'-9" | 26'-0" | 31'-3" | 35'-0" | 41'-6" | 52'-0" |
| Wind Resistance | 200km/h (125mph) | 165km/h (103mph) | 140km/h (87mph) | 130km/h (80mph) | 125km/h (77mph) | 120km/h (75mph) | 110km/h (75mph) | 80km/h (50mph) |
Structure & XL profile
- Dimensions: 4 - 1/2’’ X 12’’
- Anodized 6005-T5 aluminum extrusion
- Other parts in ASTM A36 and A514 Gr.S (CHT100) zinc plated steel
- Steel cables 1/2 ‘’ - 6X19 white vinyl coated
- 2X square rail for ‘Bolt-On’ attachment system (pendant lights, decor, etc.)
- Universal bolt 1/2’’ - 13 Gr. 5
Vinyl
- Coated vinyl 22oz
- NFPA 701 and CAN / ULC-S109 fire retardant
- Opaque to UV rays (Blackout)
- Anti-mold vinyl
- All vinyl parts inserted in the Keder rails (13mm)
- Rollers for wall opening
- Carrying bags of vinyl parts included
Tinted French windows
Clear French windows
Plain (no window)
Panoramic tinted window
Panoramic clear window
Color, printing and stickers
